P377 range
Valves used to regulate flow or pressure.Orifice size from 0.05 to 2 mm. , gas or liquid flow and pressure regulation. From vacuum up to 12 bar pressure. Suited for precision dosing in instrumentation, gas analyzers and medical applications.
Specifications
| Pitch size (mm) | 17 |
|---|---|
| Media | Non-corrosive gas and liquid |
| Connection | M5, sub-base mount, barbed |
| Pressure (bar) | -1 to 12 |
| Flow factor kv (l/min) | 0.01 to 1.0 |
| Supply voltage range (VDC) | 5, 6, 10, 12, 18, 24 |
| O2 clean option | Yes |
| Number of ways / Function | 2/2 NC proportional |
| Type of acting | Direct acting |
| Orifice size [mm] | 0.05 to 2 |
| Material in contact with media - Base | DIN 1.4305, 1.4105, Brass |
| Material in contact with media - Seals | NBR, EPDM or FPM |
| Operating Pressure Range [Bar] | -1 to 12 rel. (depending on the orifice size) |
| Temperature range - Ambient [°C] | 0° to +50° |
| Temperature range - Media [°C] | 0° to +50° |
| Internal leakage [ml/min] | ml/min < 0.6 (*) |
| External leakage [ml/min] | ml/min < 0.6 (*) |
| Nominal voltage @ 20°C [Vdc] | 5, 6, 10, 12, 18, 24. |
| Duty cycle | 100% ED |
| Protection | IP 51 (*) |

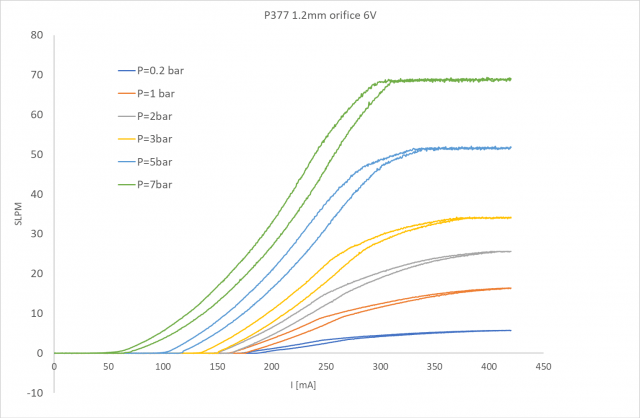

SLPM
Orifice size from 0.05 to 2 mm. , gas or liquid flow and pressure regulation. From vacuum up to 12 bar pressure. Suited for precision dosing in instrumentation, gas analyzers and medical applications.
