P107 range 2/2 w
P107 range 2/2 wGeneral purpose, media separated solenoid valve for water, aggressive fluids, and gases. Pressure range from vacuum up to 8 bars.
Specifications
| Pitch size (mm) | 32 |
|---|---|
| Media | Corrosive and non-corrosive liquids and gases |
| Pressure (bar) | -1 to 8 |
| Flow factor kv (l/min) | Up to 6.5 |
| Type of acting | Direct operated |
| Orifice size [mm] | 4 |
| Material in contact with media - Base | PEEK |
| Material in contact with media - Seals | FPM, EPDM |
| Temperature range - Ambient [°C] | 0° to +50° |
| Temperature range - Media [°C] | 0° to +50° |
| Internal leakage [ml/min] | <0.1 |
| External leakage [ml/min] | <0.1 |
| Protection | IP 65 with connector |
| Function | 2/2NC |
| Fluidic connection [Inch] | G1/4, sub-base |
| Power consumption [W] | 10 to 14 |
| Temperature range - Storage [°C] | -10 to +70 |
| Nominal voltage [Vdc] | 12, 24 |
| Response time [ms] | <30 |
| Max cycle rate [Hz] | 10 |
| Life expectancy [Cycles] | 3 million (typical) |
| Electrical connection [mm] | DIN 43650, EN 175301-803, ISO 4400 Form A |

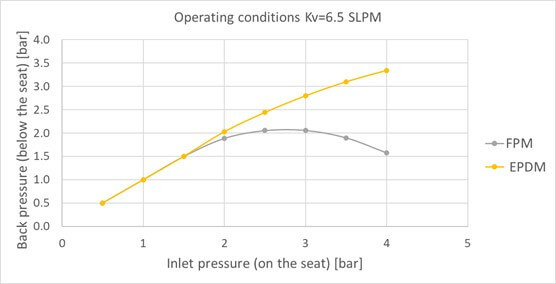

Back pressure
Pressure range from vacuum up to 8 bars.
